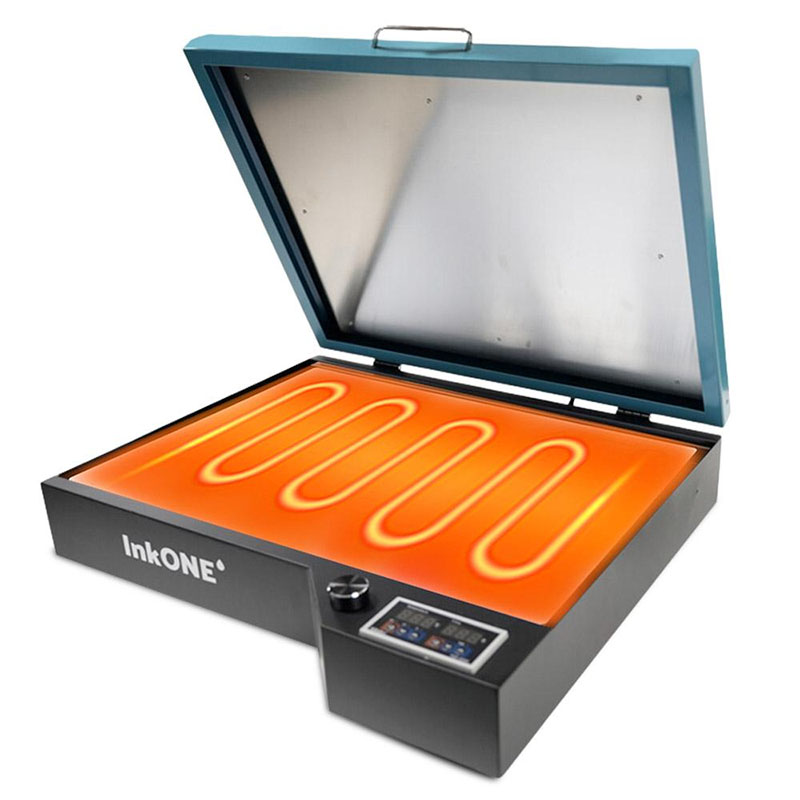

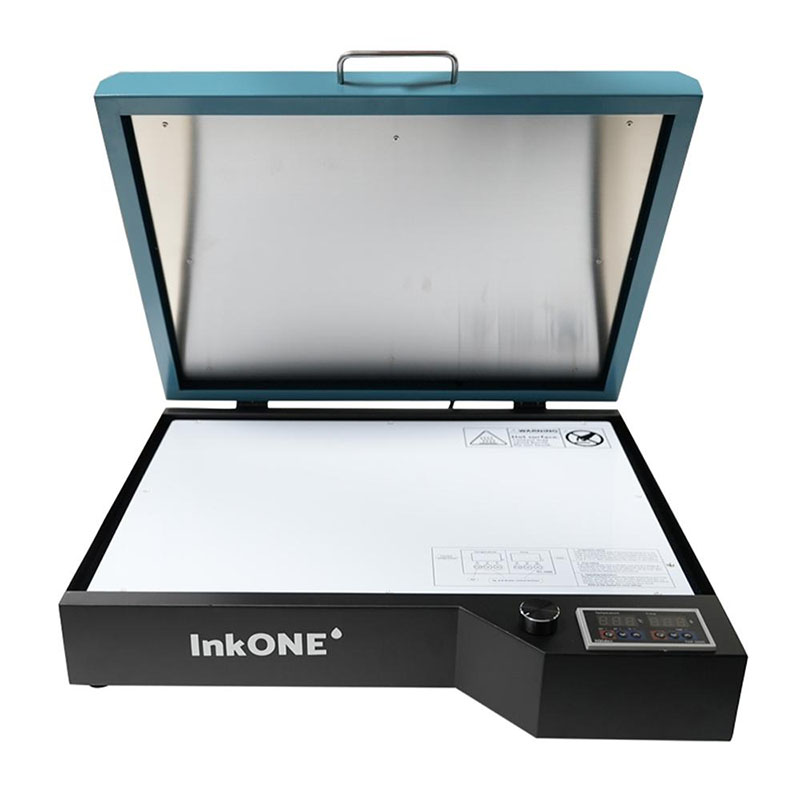

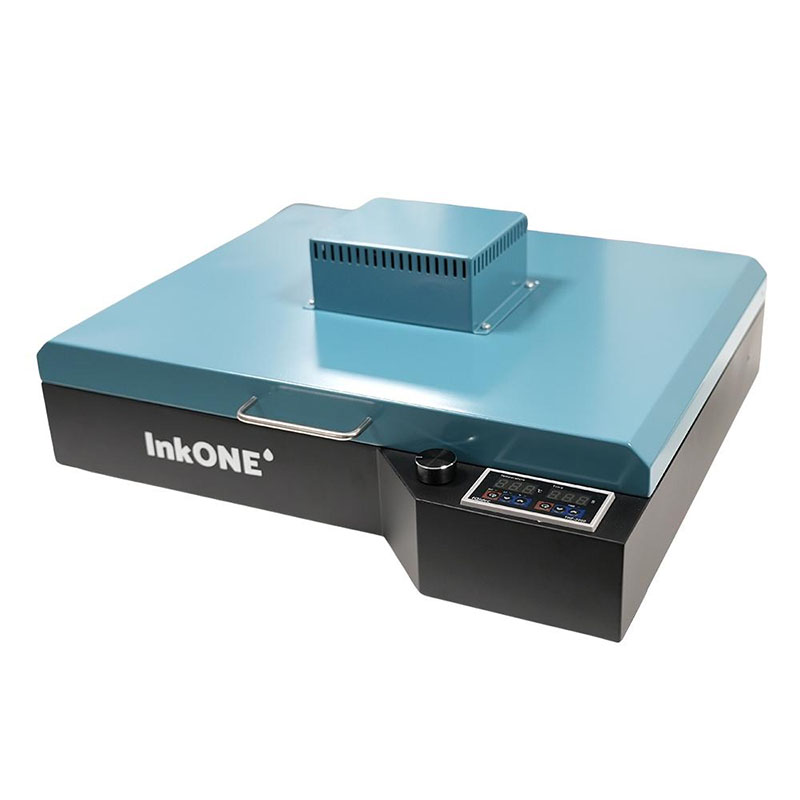

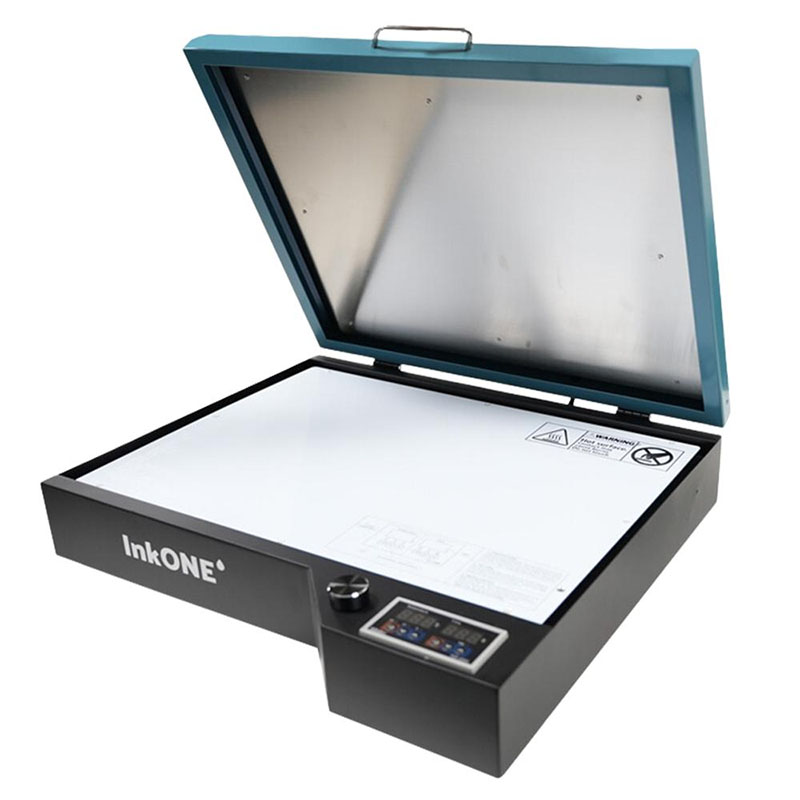

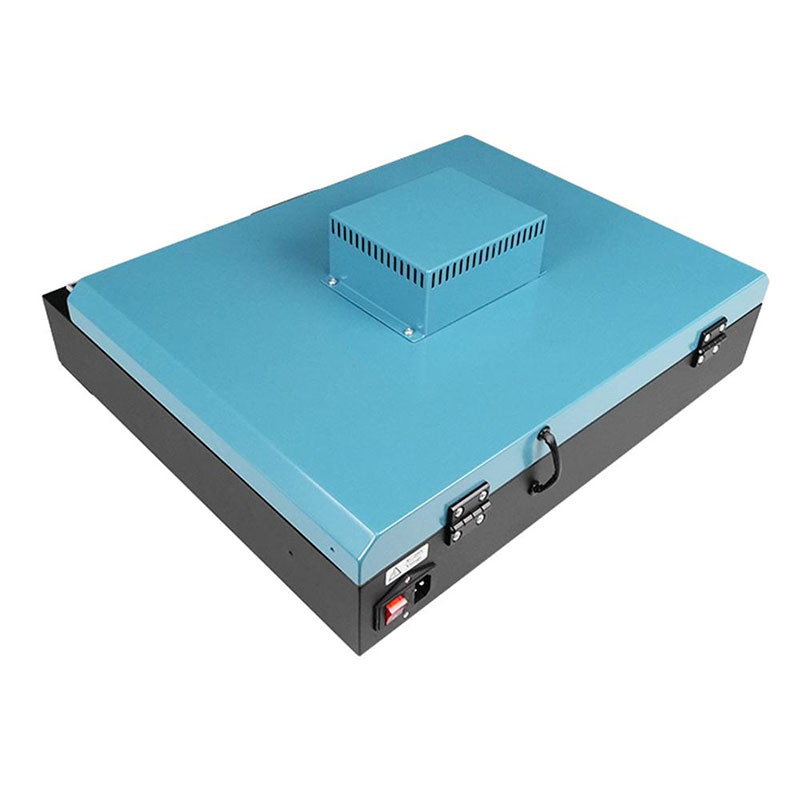

The DTF Dryer InkOne H1 (A3 Plus) is designed to cure DTF films up to DIN A3+ size. Its digital panel is very easy to use and allows for precise temperature and curing time control. It is the ideal complement for most major DTF printer brands.
DTF OVEN TECHNICAL SPECIFICATIONS
- Oven dimensions: 530 x 470 x 150 mm
- Weight: 14 kg
- Maximum Film Size: 35 x 50 cm
- Rated voltage: 220V

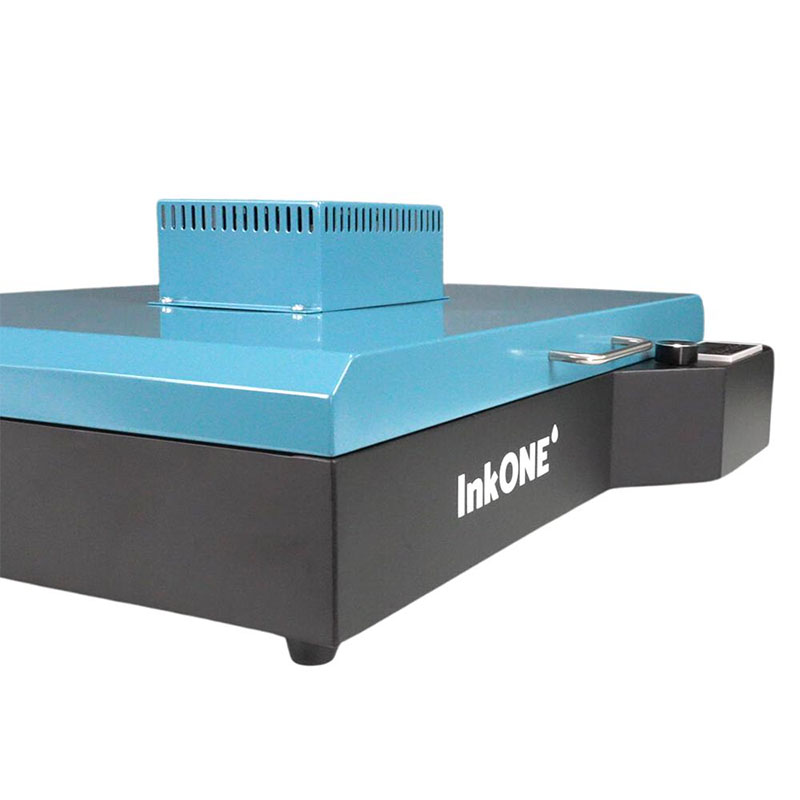

- Includes air purifier on top
- Heating pipe: ensures perfect heat performance
- Precise digital control panel: regulates the oven temperature and curing time control
- Temperature Range: 0 - 130°C
- Timer: 0-999 sec
- Ventilation grilles: for the electronic components
- Recommended time: 100 seconds (adjustable)
APPLICATIONS
- Print the image onto the matte side of the DTF film in mirror mode. (CMYK+White Ink)
- Apply Galaxy hot melt powder(Galaxy DTF Powder) evenly and then remove the excess powder by shaking
- Hovering to bake the hot melt powder: 140°C for 60 sec in DTF Oven
- Transfer the image by heat press at 150°C - 160°C for 15 sec with medium pressure
- Cold Peel (remove the film gently)
- Heat press again for curing 150°C for 5 sec with medium pressure
