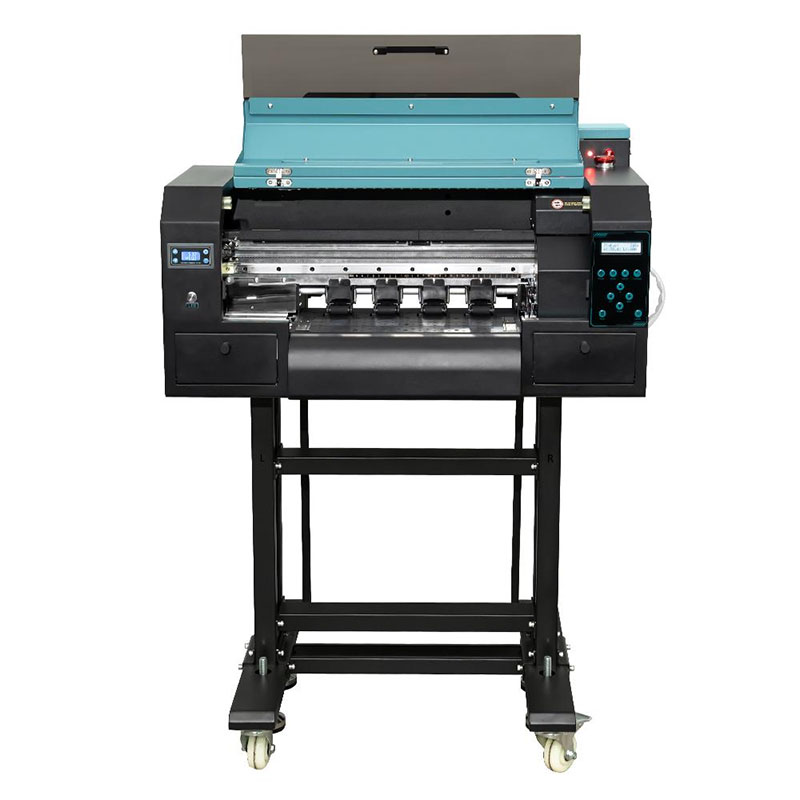

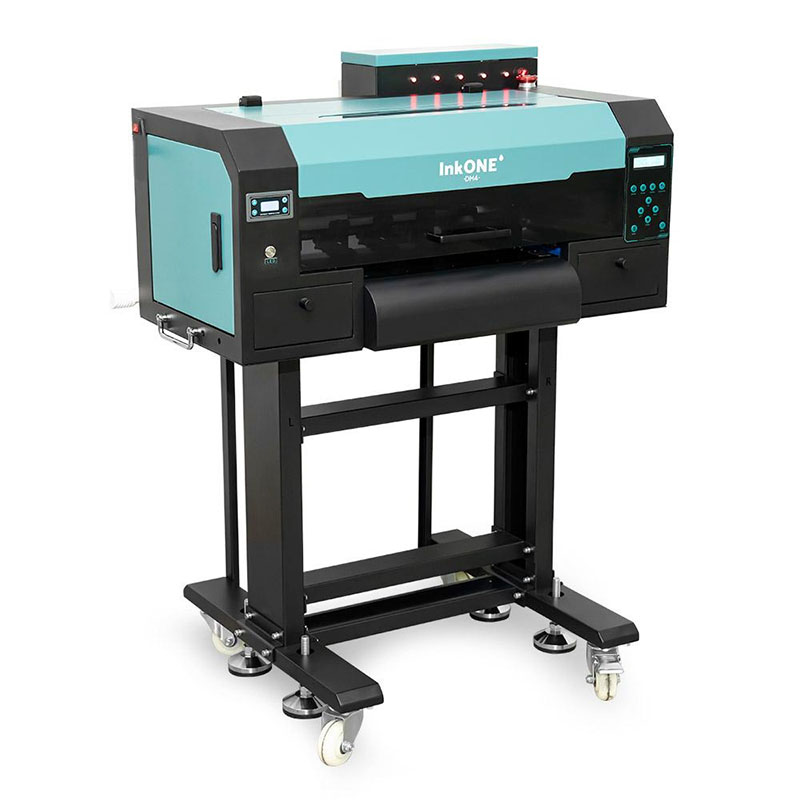

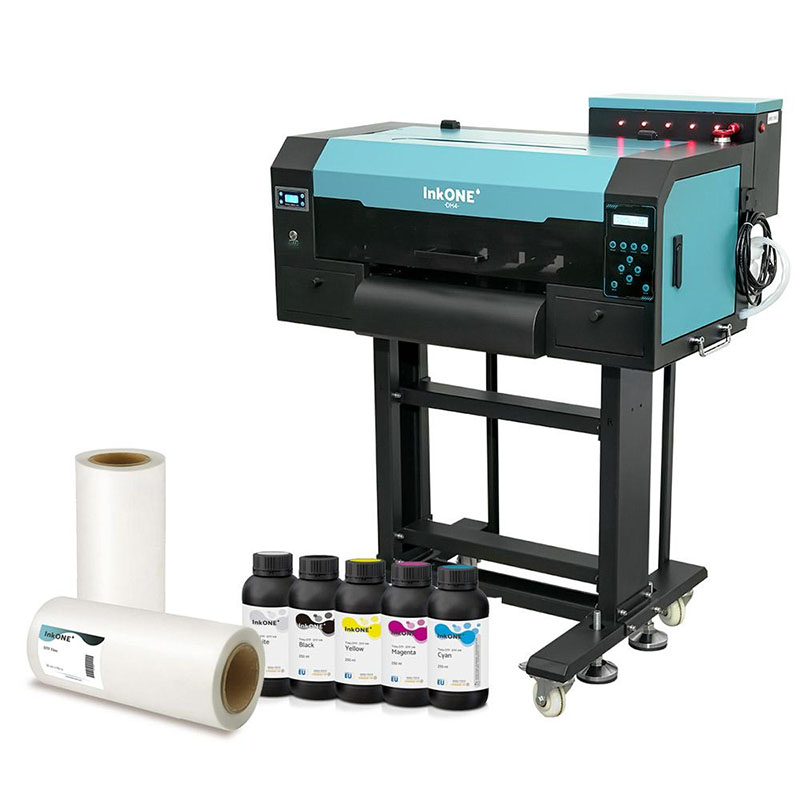

DM4 35 cm dual-head DTF printer for direct printing - starter kit
The InkONE DM4 printer starter kit includes:
- InkONE DM4 printer with dual Epson i1600 head
- DTF Dryer and Shaker InkOne SM3
- DTF inks - 5 bottles per 1000 ml (the set contains one bottle of cyan, magenta, yellow, black and white inks)
- DTF film in roll 35 cm x 50 m
- DTF hot melt powder- 1 kg
- Stand support for the printer
- Printing software on a USB drive (Flexiprint RIP printer software + Driver + ICC)
- Network cable
- 220V 16A power cable, 3 meters long
- Accessories: syringe, ink supply tubes, a set of dampers, gummed tape, residual ink bottle, residual ink tank
PRINTER TECHNICAL SPECIFICATIONS
- Printer dimensions: 853 x 643 x 530 mm
- Printer dimensions package: 970 x 670 x 670 mm
- Printer weight: 57 kg
- Printer weight package: 65 kg
- Stand dimensions: 600 x 675 x 600 mm
- Stand dimensions package: 820 x 630 x 760 mm
- Stand weight: 6 kg
- Stand weight package: 9 kg
- Interface: Ethernet Gigabyte
- Colours: CMYK+WWWW: one head head is filled with CMYK inks, the other head head is filled with white inks
- Ink consumption: 20ml/m2
- Ink technology: water-based pigment ink

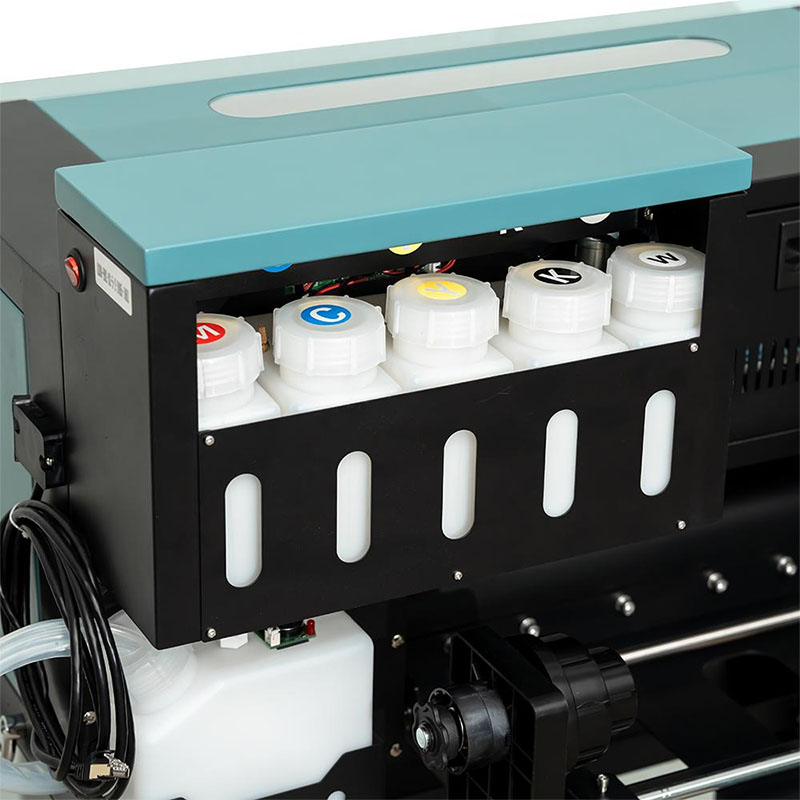

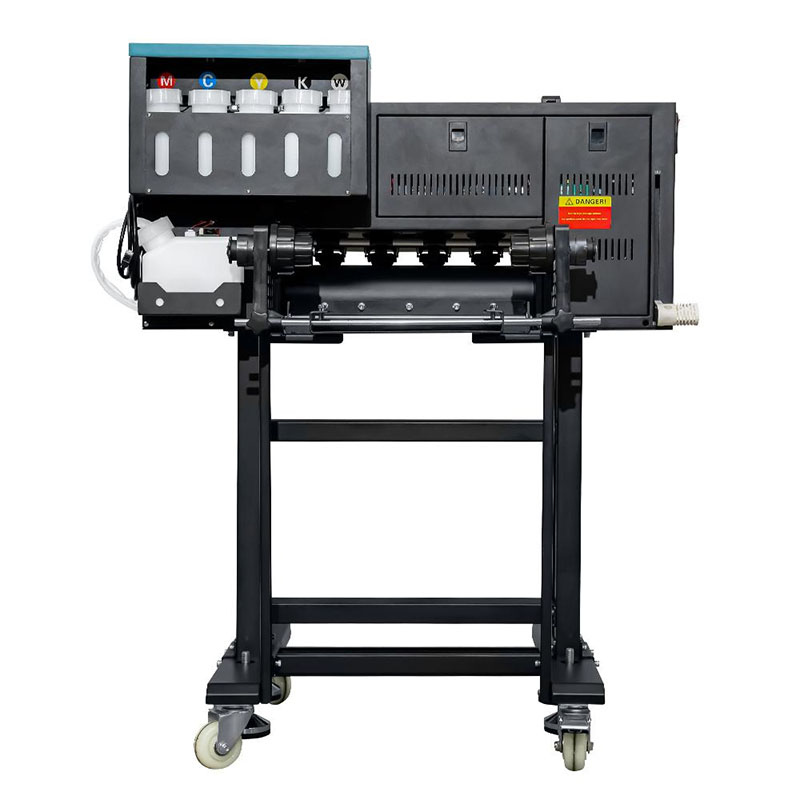

- Ink Supply: 1-liter refillable ink tank system
- Circulating System: the ink recirculation system, white ink stirrer, and additional filtering in the dampers prevent sediment formation and blockages
- Print head technology: Epson i1600 dual print head
- Printing speed: up to 6 Pass 900x720 between 7,5 and 9 ML/h ; 8 Pass 1200x720 between 4,5 and 6 ML/h (linear meters per hour)

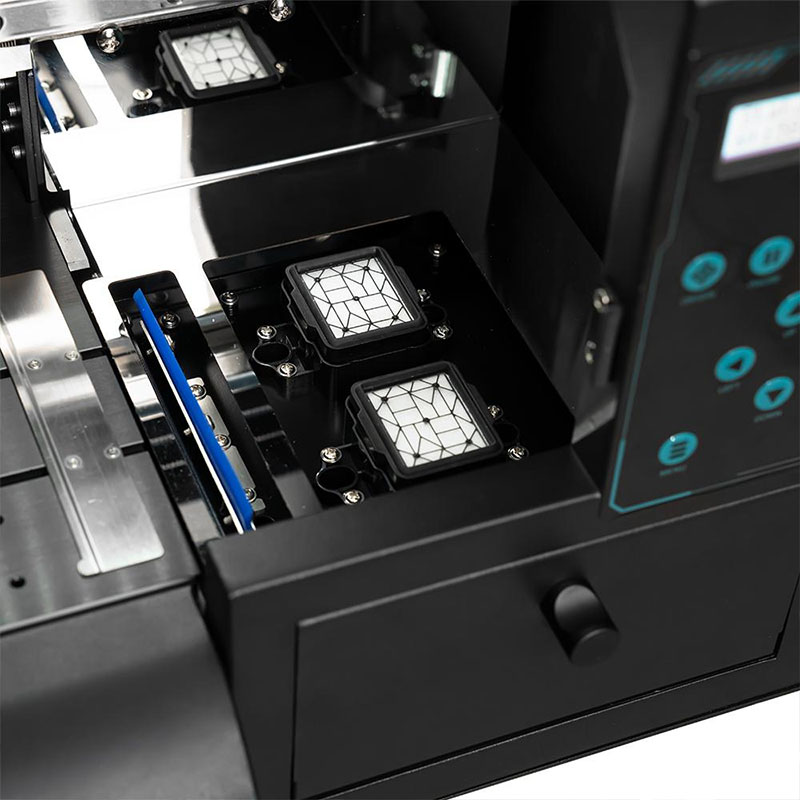

- Auto-cleaning system: keeps the heads clean and in optimal condition, minimizing downtime

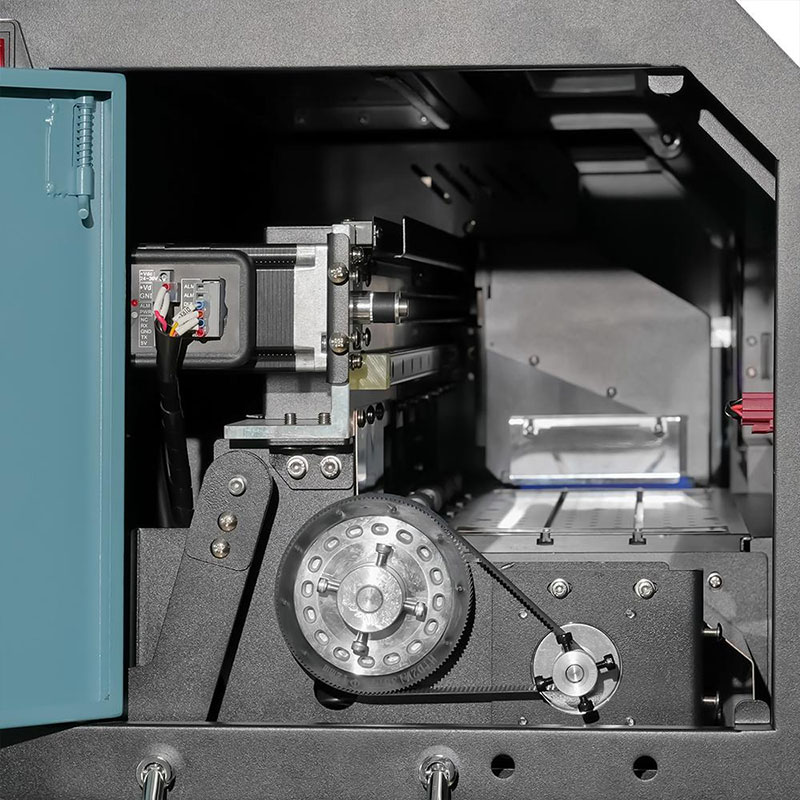

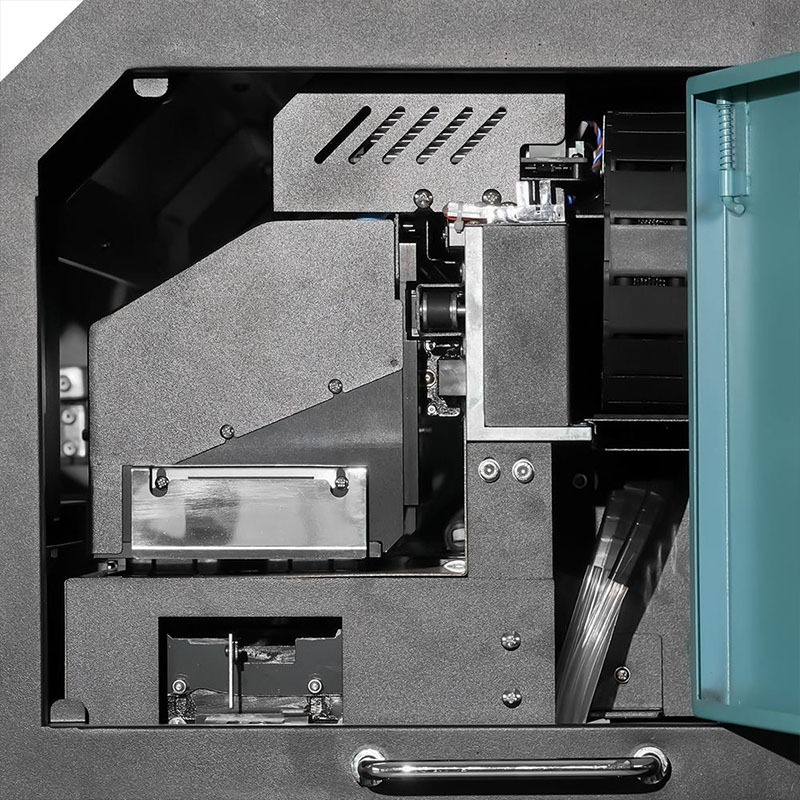

- Compact and optimized design: fits in all workspaces and provides easy access to the interior for simplified repair and maintenance
- Top window and interior light: allows for real-time verification of print quality.

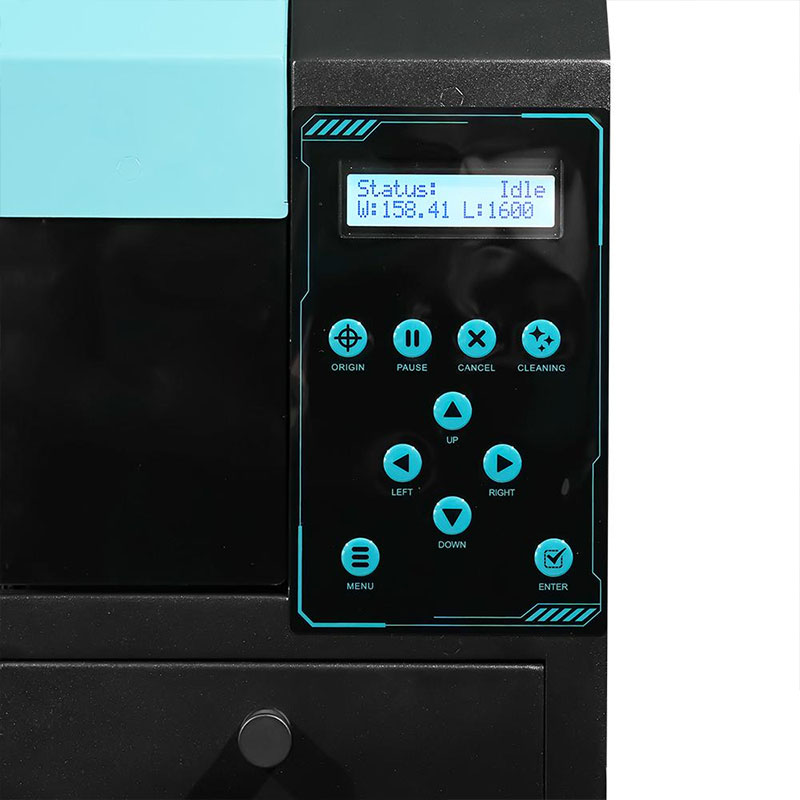

- Integrated digital display allows for easy adjustment of multiple parameters
- Warranty: 12 months (except for parts that carry ink, such as the print head, capping, wiper, damper, or the hose system). The print head is a consumable and is not covered by warranty.
The DTF printer should be placed in a place where the temperature is between 18°C and 28°C and humidity is between 45% and 60%.
DTF Dryer and Shaker InkOne SM3 TECHNICAL SPECIFICATIONS
- Dryer dimensions: 620 x 870 x 950 mm
- Dryer dimensions package: 820 x 630 x 760 mm
- Printer weight: 45 kg
- Printer weight package: 58 kg
- Maximum paper/film width: 35 cm
- Rated voltage: 220V
- Precise digital control: regulates the oven temperature, powder application, and shaking speed
- Upper compartment for powder: allows for easy and safe powder application
- Removable drawer for excess powder: enables recycling of the surplus and keeps the workspace clean
- Automatic film collection system: features cooling fans and automatic reel collection for neat film rolling
- Hepa and Carbon Filters: remove gases and dust from the oven, ensuring a safe working environment
- Disposable filters: require no cleaning; once saturated, they are simply replaced
- Ventilation system
- Paper feed device
- 2 Lamps
- Dust blocker
- 2 Aluminum rods (59 cm)
- Power cable
- Paper tube (38 cm)
- Screws and hex key for assembly
Perfect for large-scale transfer production: this system replaces the DTF drying oven and polyamide powder applicator. The transfers are ready to cut and press, or they can be stored in roll form. Automates the curing process, improving efficiency. Reduces material waste. Saves time and money.
